Decoder configuration¶

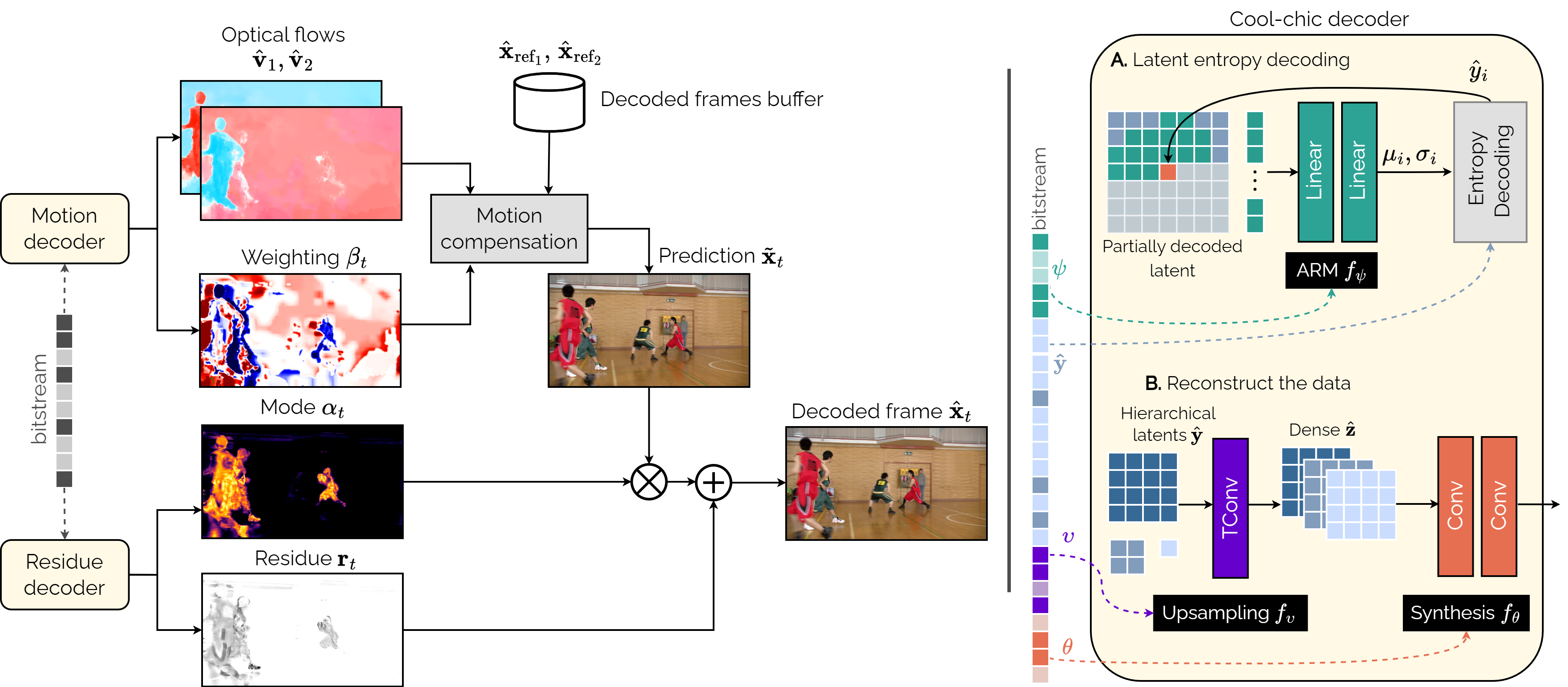

Cool-chic inter-frame decoder overview

Inter frames (P or B) decoders involves two Cool-chic decoders, one for the residue and one for the motion while intra frames only requires a residue decoder. Each Cool-chic decoder has the same architecture as the one described in the image coding section.

Since the residue and motion Cool-chic decoders have the same design, they are parameters through similar arguments. For instance --arm_residue sets up the the ARM architecture for the residue decoder, while --arm_motion achieves the same thing for the motion decoder.

Similarly, it is possible to provide a decoder configuration file for the motion Cool-chic decoder through the --dec_cfg_motion arguments. Example configuration files are listed in cfg/dec/motion/.

Motion compensation options¶

Motion compensation requires to interpolate in between pixels e.g., to achieve a shift of 7.25 pixels. To do so, an interpolation filter is used. The size of the interpolation filter is parameterized by --warp_filter_size. See paper Efficient Sub-pixel Motion Compensation in Learned Video Codecs, Ladune et al for more details.

The type of interpolation performed is derived from the filter size. Note that --warp_filter_size must be even

Motion compensation interpolation.¶

warp_filter_size

Type

2

Bilinear

4

Bicubic

6 or above

Sinc-based

Motion fields downsampling¶

To obtain uniform motion on a block of \(B \times B\) pixels, we rely on --n_ft_per_res_motion. As explained here, having the first \(N\) latents of the motion Cool-chic with no feature leads to a decoding of a motion fields with motion values common to blocks of \(2^N \times 2^N\) pixels.

# Each motion vector is common for a block of 8x8 pixels.
--n_ft_per_res_motion=0,0,0,1,1

Frame-wise decoder configuration¶

In a hierarchical coding structure, not all frames are equally important. As such, it is often interesting to use lighter architectures for not-so-important frames. The video coding example script provides an example of frame-wise decoder configuration automatically generated.
