Study B — Optimal Dataset Sparsity \(p_e^*\) vs Problem Size \(N\)¶
Identifies the value of \(p_e\) minimising the number of steps to convergence for each problem size \(N\). Validates the a consistent scaling relationship \(p_e^* \propto 1/N\). For each value of \(N \in [10,1000]\), sweeps \(p_e\) over [1/(2N), 10/N] and records the optimal \(p_e\) that minimises steps to convergence.
Data generated by: run_study_B.py
Paper section: Section 5.2.2 — Impact of Dataset Sparsity \(p_e\) (Figure 4)
Parameter |
Value |
|---|---|
Problem Size \(N\) |
[10, 1000] (50 values, log spaced) |
Num. Parallel Nodes \(P\) |
\(\lfloor 1000 / N \rfloor\) |
Learning Rate \(\alpha\) |
0.1 |
Batch Size \(M\) |
100 |
Bernouilli Prob. \(p_e\) |
[1/(2N), 10/N] (50 values per N, linearly spaced) |
Max. Steps \(S\) |
25000 |
Oracle Proportion \(p_w\) |
0.5 |
[1]:
import numpy as np
import matplotlib.pyplot as plt
import sys
import os
import glob
# Add parent directory to path
sys.path.append('..')
from plotting.plot_utility import plot_metric_vs_param, compute_steps_to_thresholds, setup_plot_style
%matplotlib inline
setup_plot_style()
[2]:
def get_latest_study_folder(study_prefix):
pattern = f'../studies/results/{study_prefix}_*/'
folders = glob.glob(pattern)
if folders:
return max(folders) # Latest by name (timestamp-based)
return None
mode = 'auto' # Change to 'manual' to specify your own path
if mode == 'auto':
results_dir = get_latest_study_folder('B_p_e_optimal')
if results_dir is None:
raise FileNotFoundError("No Study B results found. Run run_study_B.py first.")
print(f"Auto-detected folder: {results_dir}")
else:
results_dir = '../studies/results/B_p_e_optimal_XXXXXX_XXXXXX/'
print(f"Using manual path: {results_dir}")
n_values = np.load(results_dir + 'n_values.npy')
optimal_p_e_per_n = np.load(results_dir + 'optimal_p_e_per_n.npy')
optimal_steps_per_n = np.load(results_dir + 'optimal_steps_per_n.npy')
# Filter out any N values greater than 500 (N>500 convergence in more than 10000 steps):
# Get ID of N values <= 500
id = len(n_values) # Default to last index
for i in range(len(n_values)):
if n_values[i] > 1001: #600
id = i
break
n_values = n_values[:id]
optimal_p_e_per_n = optimal_p_e_per_n[:id]
optimal_steps_per_n = optimal_steps_per_n[:id]
print(f"\nN range: {n_values[0]} to {n_values[-1]}")
print(f"Number of N values: {len(n_values)}")
print(f"\nOptimal p_e for each N:")
for N, p_e, steps in zip(n_values, optimal_p_e_per_n, optimal_steps_per_n):
print(f" N={N:4d}: p_e={p_e:.6f} (1/N: {1/N:.6f}), steps={steps:4.0f}")
Auto-detected folder: ../studies/results/B_p_e_optimal_20260420_200010/
N range: 10 to 1000
Number of N values: 50
Optimal p_e for each N:
N= 10: p_e=0.166327 (1/N: 0.100000), steps= 173
N= 10: p_e=0.166327 (1/N: 0.100000), steps= 173
N= 12: p_e=0.154762 (1/N: 0.083333), steps= 202
N= 13: p_e=0.142857 (1/N: 0.076923), steps= 218
N= 14: p_e=0.132653 (1/N: 0.071429), steps= 233
N= 15: p_e=0.136735 (1/N: 0.066667), steps= 246
N= 17: p_e=0.109244 (1/N: 0.058824), steps= 281
N= 19: p_e=0.107948 (1/N: 0.052632), steps= 308
N= 21: p_e=0.097668 (1/N: 0.047619), steps= 347
N= 23: p_e=0.089175 (1/N: 0.043478), steps= 373
N= 25: p_e=0.074286 (1/N: 0.040000), steps= 413
N= 28: p_e=0.073251 (1/N: 0.035714), steps= 450
N= 30: p_e=0.068367 (1/N: 0.033333), steps= 479
N= 33: p_e=0.062152 (1/N: 0.030303), steps= 526
N= 37: p_e=0.055433 (1/N: 0.027027), steps= 593
N= 40: p_e=0.051276 (1/N: 0.025000), steps= 637
N= 44: p_e=0.046614 (1/N: 0.022727), steps= 696
N= 49: p_e=0.041858 (1/N: 0.020408), steps= 774
N= 54: p_e=0.037982 (1/N: 0.018519), steps= 860
N= 59: p_e=0.038049 (1/N: 0.016949), steps= 925
N= 65: p_e=0.034537 (1/N: 0.015385), steps=1021
N= 71: p_e=0.031618 (1/N: 0.014085), steps=1123
N= 79: p_e=0.028416 (1/N: 0.012658), steps=1225
N= 86: p_e=0.026103 (1/N: 0.011628), steps=1338
N= 95: p_e=0.023631 (1/N: 0.010526), steps=1483
N= 104: p_e=0.021586 (1/N: 0.009615), steps=1626
N= 115: p_e=0.019521 (1/N: 0.008696), steps=1793
N= 126: p_e=0.017817 (1/N: 0.007937), steps=1960
N= 138: p_e=0.016267 (1/N: 0.007246), steps=2147
N= 152: p_e=0.014769 (1/N: 0.006579), steps=2354
N= 167: p_e=0.013443 (1/N: 0.005988), steps=2591
N= 184: p_e=0.012201 (1/N: 0.005435), steps=2855
N= 202: p_e=0.011113 (1/N: 0.004950), steps=3120
N= 222: p_e=0.010112 (1/N: 0.004505), steps=3464
N= 244: p_e=0.009200 (1/N: 0.004098), steps=3790
N= 268: p_e=0.008376 (1/N: 0.003731), steps=4116
N= 294: p_e=0.007636 (1/N: 0.003401), steps=4559
N= 323: p_e=0.006950 (1/N: 0.003096), steps=5012
N= 355: p_e=0.006324 (1/N: 0.002817), steps=5449
N= 390: p_e=0.005756 (1/N: 0.002564), steps=5989
N= 429: p_e=0.005233 (1/N: 0.002331), steps=6634
N= 471: p_e=0.004766 (1/N: 0.002123), steps=7268
N= 517: p_e=0.004342 (1/N: 0.001934), steps=8026
N= 568: p_e=0.003952 (1/N: 0.001761), steps=8736
N= 625: p_e=0.003592 (1/N: 0.001600), steps=9632
N= 686: p_e=0.003272 (1/N: 0.001458), steps=10527
N= 754: p_e=0.002977 (1/N: 0.001326), steps=11507
N= 828: p_e=0.002711 (1/N: 0.001208), steps=12797
N= 910: p_e=0.002467 (1/N: 0.001099), steps=14090
N=1000: p_e=0.002245 (1/N: 0.001000), steps=15497
[3]:
# Compute lim p_e for each N
lim_p_e_per_n = []
lim_improvement = 0.1 # 10% improvement starting at an average distance of 0.5 = 0.4 threshold
for N in n_values:
print(f"Compute lim p_e for N={N}", end='\r')
# Load individual N results
p_e_values = np.load(f"{results_dir}/N_{N}_p_e_values.npy")
# steps = np.load(f"{results_dir}/N_{N}_steps.npy")
p_diff_matrix = np.load(f"{results_dir}/N_{N}_p_diff_matrix.npy")
# Compute Limit p_e
p_e_id_lim = -1
for p_e_index in range(p_e_values.shape[0]):
# Parse results at a certain p_e
id_lim = -1
for i in range(p_diff_matrix.shape[1]):
x = p_diff_matrix[p_e_index, i]
if np.isnan(x):
id_lim = i
break
#print(id_lim, p_diff_matrix[p_e_index, id_lim],p_diff_matrix[p_e_index, id_lim-1])
if p_diff_matrix[p_e_index, id_lim-1] > 0.5*(1 - lim_improvement):
p_e_id_lim = p_e_index
break
print(f"N={N}: Limit p_e ~ {p_e_values[p_e_id_lim]:.6f}")
lim_p_e_per_n.append(p_e_values[p_e_id_lim])
N=10: Limit p_e ~ 0.670408
N=10: Limit p_e ~ 0.670408
N=12: Limit p_e ~ 0.623299
N=13: Limit p_e ~ 0.560440
N=14: Limit p_e ~ 0.534257
N=15: Limit p_e ~ 0.511565
N=17: Limit p_e ~ 0.462785
N=19: Limit p_e ~ 0.414071
N=21: Limit p_e ~ 0.383868
N=23: Limit p_e ~ 0.367347
N=25: Limit p_e ~ 0.337959
N=28: Limit p_e ~ 0.294825
N=30: Limit p_e ~ 0.275170
N=33: Limit p_e ~ 0.244280
N=37: Limit p_e ~ 0.238831
N=40: Limit p_e ~ 0.216071
N=44: Limit p_e ~ 0.192022
N=49: Limit p_e ~ 0.168471
N=54: Limit p_e ~ 0.160053
N=59: Limit p_e ~ 0.146489
N=65: Limit p_e ~ 0.127002
N=71: Limit p_e ~ 0.116269
N=79: Limit p_e ~ 0.102041
N=86: Limit p_e ~ 0.095990
N=95: Limit p_e ~ 0.086896
N=104: Limit p_e ~ 0.081240
N=115: Limit p_e ~ 0.070098
N=126: Limit p_e ~ 0.062439
N=138: Limit p_e ~ 0.058415
N=152: Limit p_e ~ 0.051759
N=167: Limit p_e ~ 0.045949
N=184: Limit p_e ~ 0.042757
N=202: Limit p_e ~ 0.037028
N=222: Limit p_e ~ 0.033692
N=244: Limit p_e ~ 0.030654
N=268: Limit p_e ~ 0.027909
N=294: Limit p_e ~ 0.024781
N=323: Limit p_e ~ 0.023157
N=355: Limit p_e ~ 0.019431
N=390: Limit p_e ~ 0.018184
N=429: Limit p_e ~ 0.016531
N=471: Limit p_e ~ 0.015057
N=517: Limit p_e ~ 0.012592
N=568: Limit p_e ~ 0.011462
N=625: Limit p_e ~ 0.010106
N=686: Limit p_e ~ 0.009207
N=754: Limit p_e ~ 0.008634
N=828: Limit p_e ~ 0.007628
N=910: Limit p_e ~ 0.006728
N=1000: Limit p_e ~ 0.006122

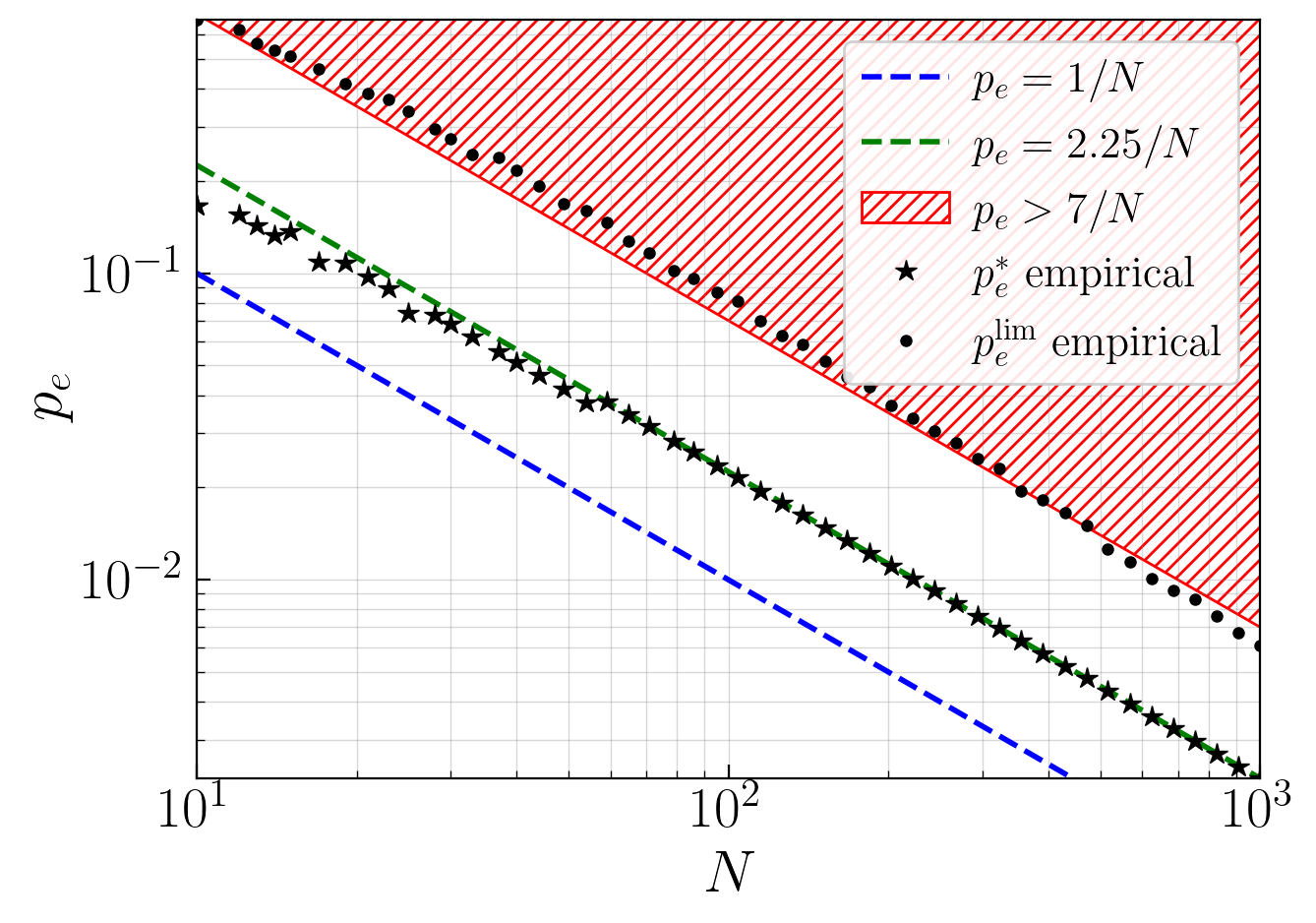

Optimal \(p_e\) vs \(N\)¶
Empirically optimal \(p_e^*\) (minimising convergence steps) plotted against \(N\), with the theoretical value \(p_e = 1/N\) as a reference. The limit \(p_e^\text{lim}\) is the value above which convergence fail in the alloted number of steps.
See Paper Section 5.2.2 Figure 4.
[4]:
fig, ax = plt.subplots()
ax.plot(n_values, 1/n_values, 'b--', label='$p_e=1/N$', linewidth=2)
ax.plot(n_values, 2.25/n_values, 'g--', label='$p_e= 2.25/N$', linewidth=2)
ax.fill_between(n_values, 7/n_values, 0.7, hatch="////", facecolor="none", edgecolor="red", label='$p_e > 7/N$')
ax.plot(n_values, optimal_p_e_per_n, marker='*', color='black', markersize=8, label='$p_e^*$ empirical', linewidth=0)
ax.plot(n_values, lim_p_e_per_n, marker='.', color='black', markersize=8, label='$p_e^\\mathrm{lim}$ empirical', linewidth=0)
ax.set_xlabel('$N$')
ax.set_ylabel('$p_e$')
ax.set_xscale('log')
ax.set_yscale('log')
ax.set_xlim([n_values[0], n_values[-1]])
ax.set_ylim([min(optimal_p_e_per_n), max(lim_p_e_per_n)])
ax.legend()
plt.tight_layout()
plt.show()

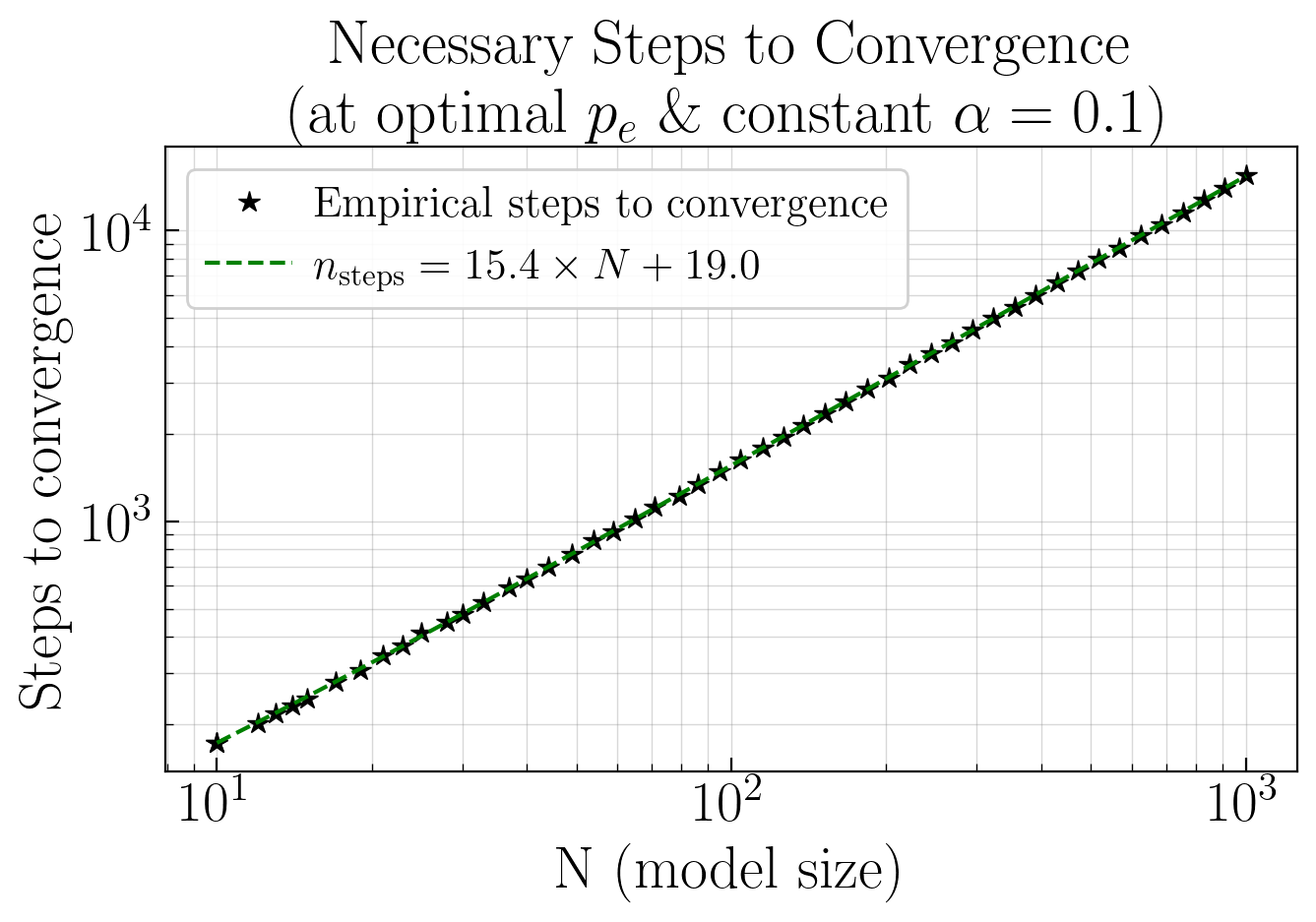

Additional Results - Steps to Convergence at \(p_e^*\)¶
Number of training steps required to converge when \(p_e = p_e^*(N)\). A linear fit is overlaid to characterise the scaling law with \(N\).
[5]:
fig, ax = plt.subplots()
ax.plot(n_values, optimal_steps_per_n, color='black', marker='*', markersize=8, linewidth=0, label='Empirical steps to convergence')
# Exact a,b value to be refined
a = 15.4
b = 19
ax.plot(n_values, [a*n_values[i]+b for i in range(len(n_values))], color='green', linestyle='--', label=f'$n_\\mathrm{{steps}}={a:.1f} \\times N + {b:.1f}$')
ax.set_xlabel('N (model size)')
ax.set_ylabel('Steps to convergence')
ax.set_title('Necessary Steps to Convergence\n(at optimal $p_e$ \& constant $\\alpha=0.1$)')
ax.set_xscale('log')
ax.set_yscale('log')
ax.legend()
plt.tight_layout()
plt.show()
Additional Results - Convergence for Selected \(N\) — Iso-Step Curves¶
Detailed view of the convergence landscape (\(p_\text{diff}\) vs \(p_e\) after a given number of steps) for a representative subset of \(N\) values. Each subplot shows iso-step curves and highlights the empirically optimal \(p_e^*\).
[6]:
selected_n = n_values
def create_subplot_grid(rows, cols):
"""Create subplot grid using default figsize scaled by rows/cols."""
default_width = plt.rcParams['figure.figsize'][0]
default_height = plt.rcParams['figure.figsize'][1]
figwidth = cols * default_width
figheight = rows * default_height
fig, axes = plt.subplots(rows, cols, figsize=(figwidth, figheight))
return fig, axes
row, col = 12, 4
fig, axes = create_subplot_grid(row, col)
for idx, (ax, N) in enumerate(zip(axes.flatten(), selected_n)):
print(f"Plot in progress n{idx} - N = {N}", end='\r')
p_e_values = np.load(f"{results_dir}/N_{N}_p_e_values.npy")
p_diff_matrix = np.load(f"{results_dir}/N_{N}_p_diff_matrix.npy")
thresholds, steps_data = compute_steps_to_thresholds(p_e_values, p_diff_matrix, n_thresholds=9)
plot_metric_vs_param(
p_e_values,
steps_data,
ax,
draw_best=False,
xscale='log',
yscale='linear',
value_labels=thresholds,
add_min_curve=False
)
optimal_p_e = np.load(f"{results_dir}/optimal_p_e_per_n.npy")
global_idx = np.argwhere(n_values==selected_n[idx])[0][0]
ax.axvline(x=optimal_p_e[global_idx], color='green', linestyle='--', label=f'$p_e^*$')
ax.axvline(x=1/N, color='blue', linestyle='--', label=f'$p_e = 1/N$')
ax.axvline(x=lim_p_e_per_n[global_idx], color='red', linestyle='--', label=f'$p_e^\\mathrm{{lim}}$')
ax.set_xlabel('$p_e$')
ax.set_ylabel('Steps to convergence')
ax.set_title(f'N = {N}')
ax.set_xscale('log')
ax.legend()
plt.tight_layout()
plt.show()
Plot in progress n47 - N = 828
