Study C — Impact of Learning Rate \(\alpha\) on Convergence¶
Explores how the learning rate \(\alpha\) affects convergence for several problem sizes \(N\), under unit sparsity (\(p_e = 1/N\)). Compares empirical behaviour with the theoretical convergence bounds \(\alpha_0\), \(\alpha_1\), \(\alpha_2\).
Data generated by: run_study_C.py
Paper section: Appendix G.4 — Additional Learning Rate Analysis (Figures 24 and 25)
Parameter |
Value |
|---|---|
Problem Size \(N\) |
100 |
Num. Parallel Nodes \(P\) |
10 |
Learning Rate \(\alpha\) |
[0.01, 100] (50 values, log-spaced) |
Batch Size \(M\) |
50000 |
Bernouilli Prob. \(p_e\) |
\(1/N\) |
Max. Steps \(S\) |
10000 |
Oracle Proportion \(p_w\) |
0.5 |
[1]:
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as patches
import sys
import os
import glob
# Add parent directory to path
sys.path.append('..')
from plotting.plot_utility import plot_metric_vs_param, compute_steps_to_thresholds, setup_plot_style
%matplotlib inline
setup_plot_style()
[2]:
def get_latest_study_folder(study_prefix):
pattern = f'../studies/results/{study_prefix}_*/'
folders = glob.glob(pattern)
if folders:
return max(folders) # Latest by name (timestamp-based)
return None
mode = 'auto' # Change to 'manual' to specify your own path
if mode == 'auto':
results_dir = get_latest_study_folder('C_alpha_impact')
if results_dir is None:
raise FileNotFoundError("No Study C results found. Run run_study_C.py first.")
print(f"Auto-detected folder: {results_dir}")
else:
results_dir = '../studies/results/C_alpha_impact_XXXXXX_XXXXXX/'
print(f"Using manual path: {results_dir}")
alpha_values = np.load(results_dir + 'alpha_values.npy')
p_diff_matrix = np.load(results_dir + 'p_diff_matrix.npy')
steps_to_convergence = np.load(results_dir + 'steps_to_convergence.npy')
print(f"\nalpha range: {alpha_values[0]:.6f} to {alpha_values[-1]:.6f}")
print(f"Number of alpha values: {len(alpha_values)}")
print(f"p_diff_matrix shape: {p_diff_matrix.shape}")
# Identify optimal and first-diverging alpha indices
optimal_steps = +np.inf
alpha_id_optimal = None
alpha_id_first_divergence = None
for alpha_id in range(len(alpha_values)):
p_diff_at_alpha = p_diff_matrix[alpha_id, :]
for i in range(len(p_diff_at_alpha)):
if i > 0:
if np.isnan(p_diff_at_alpha[i]) or p_diff_at_alpha[i] > p_diff_at_alpha[i-1]:
if alpha_id_first_divergence is None:
alpha_id_first_divergence = alpha_id
break
if p_diff_at_alpha[i] < 0.025:
if i < optimal_steps:
optimal_steps = i
alpha_id_optimal = alpha_id
break
print(f"Optimal alpha_id : {alpha_id_optimal}, alpha_value: {alpha_values[alpha_id_optimal]:.6f}")
print(f"First alpha_id with divergence: {alpha_id_first_divergence}, alpha_value: {alpha_values[alpha_id_first_divergence]:.6f}\n")
# Theoretical bounds
n = 100
# sigma convergence bound \frac{x}{2}e^{-\frac{79x-9}{32x-72}}
bound_1 = (n) * np.exp(-(72 * n - 9) / (32 * n - 72))
# monotonic behaviour bound: \frac{x}{2}e^{-\frac{79x-9}{32x-72}}
bound_2 = (n / 2) * np.exp(-(72 * n - 9) / (32 * n - 72))
# Bounded convergence interval bound: N \times \frac{3 - 2e^{+\varepsilon(N)}}{4\times \left[\frac{3}{2} e^{9/4} e^{\eta^{(\xi)}_{\max}(N)} - e^{-1} e^{-\eta^{(\zeta)}_{\max}(N)}\right]}
epsilon = (402*n-216)/(2*n*(32*n-72))
eta_xi_max = 153/(32*n-72)
eta_zeta_max = 3/(2*n)
bound_3 = n * (3 - 2 * np.exp(+epsilon)) / (4 * (1.5 * np.exp(9 / 4) * np.exp(+eta_xi_max) - np.exp(-1) * np.exp(-eta_zeta_max)))
print(f"Theoretical bounds:\n Bound 1 (sigma convergence): {bound_1:.6f}\n Bound 2 (monotonic behaviour): {bound_2:.6f}\n Bound 3 (bounded convergence interval): {bound_3:.6f}\n")
Auto-detected folder: ../studies/results/C_alpha_impact_20260420_200913/
alpha range: 0.010000 to 100.000000
Number of alpha values: 50
p_diff_matrix shape: (50, 10000)
Optimal alpha_id : 44, alpha_value: 39.069399
First alpha_id with divergence: 46, alpha_value: 56.898660
Theoretical bounds:
Bound 1 (sigma convergence): 10.036788
Bound 2 (monotonic behaviour): 5.018394
Bound 3 (bounded convergence interval): 1.488074
Error \(p_\text{diff}\) vs \(\alpha\) — Iso-Step Curves¶

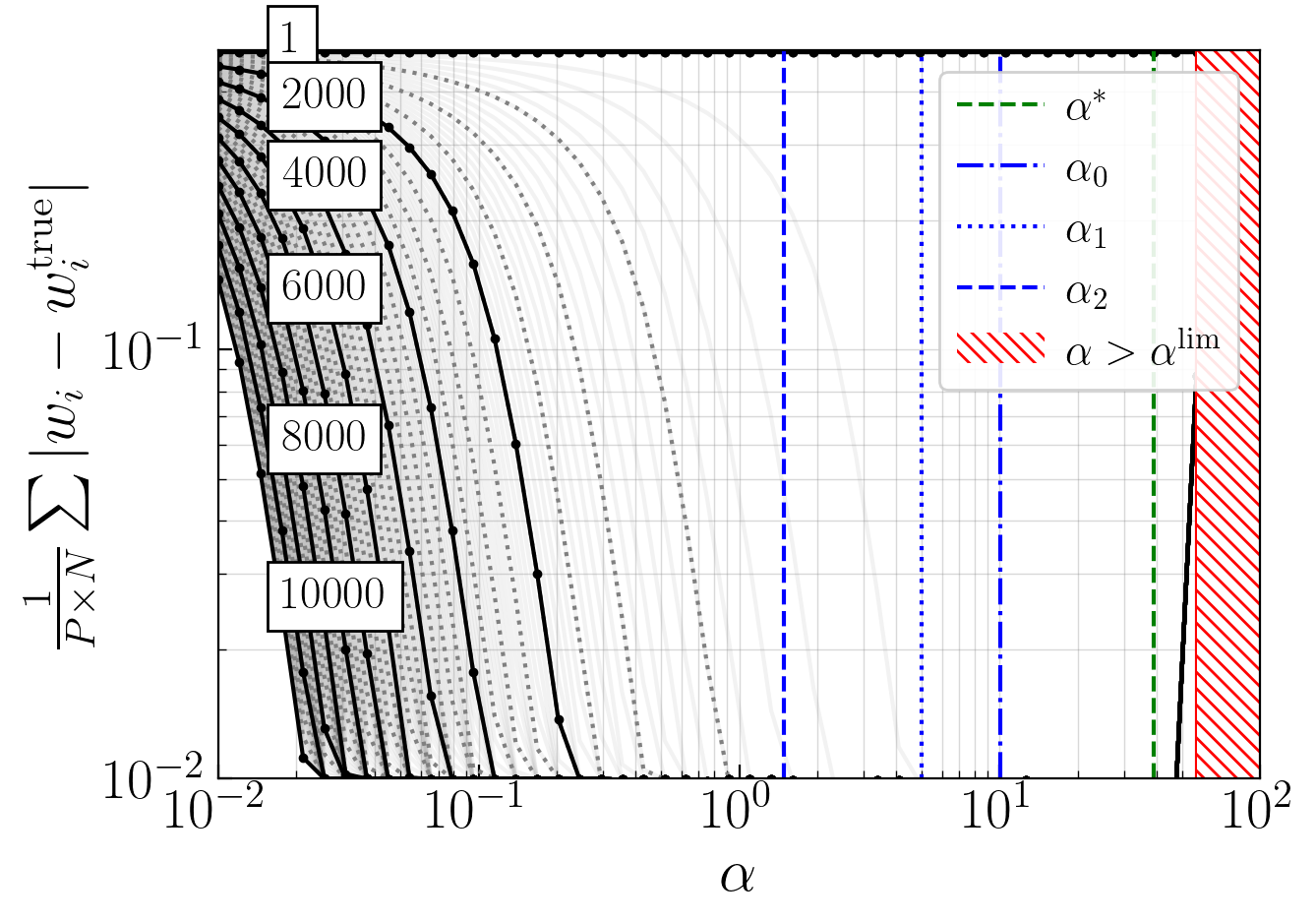

Each curve corresponds to a fixed number of training steps. The theoretical convergence/divergence boundaries \(\alpha_0\), \(\alpha_1\), \(\alpha_2\) derived in §4.3 are overlaid as vertical reference lines. The red hatched zone denote the zone where there is no convergence in the considered max number of steps \(S=10000\)
See Paper Appendix G.4. Figure 24
[3]:
fig, ax = plt.subplots()
p_diff_matrix = np.clip(p_diff_matrix, None, 0.5)
plot_metric_vs_param(
alpha_values,
p_diff_matrix,
ax,
draw_best=False,
add_min_curve=False,
xscale='log',
yscale='log'
)
ax.set_xlabel(r'$\alpha$')
ax.set_ylabel('$\\frac{1}{P \\times N}\sum|w_i-w_i^\mathrm{true}|$')
ax.set_ylim(bottom=0.01, top=0.5)
ax.set_xlim(left=1e-2, right=1e2)
ax.axvline(x=alpha_values[alpha_id_first_divergence], color='red', linestyle='-')
ax.axvline(x=alpha_values[alpha_id_optimal], color='green', linestyle='--', label="$\\alpha^*$")
ax.axvline(x=bound_1, color='blue', linestyle='-.', label='$\\alpha_0$')
ax.axvline(x=bound_2, color='blue', linestyle=':', label='$\\alpha_1$')
ax.axvline(x=bound_3, color='blue', linestyle='--', label='$\\alpha_2$')
p = patches.Rectangle((alpha_values[alpha_id_first_divergence],0), 100, 1, linewidth=0, fill=True, fc='white', ec='red', hatch='\\\\\\\\',zorder=2, label='$\\alpha>\\alpha^\\mathrm{lim}$')
ax.add_patch(p)
ax.legend(loc='upper right')
plt.tight_layout()
plt.show()
Steps to Convergence vs \(\alpha\) — Iso-\(p_\text{diff}\) Curves¶

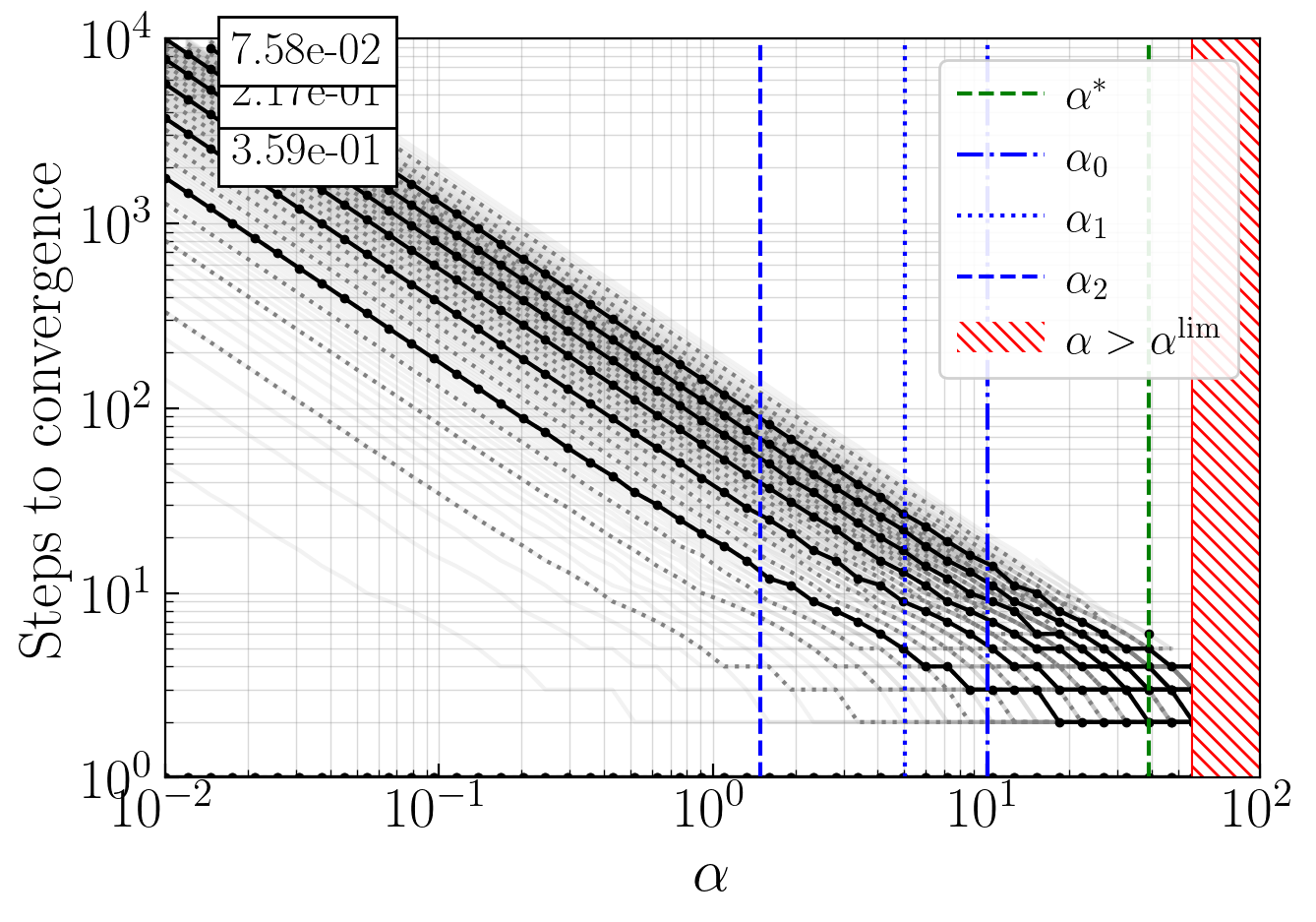

Each curve shows the number of steps required to reach a given \(p_\text{diff}\) threshold as a function of \(\alpha\). One can see a clear linear relationship between \(\alpha\) and the convergence speed, until reaching the \(\alpha^\text{lim}\) threshold where the convergence suddently breaks.
See Paper Appendix G.4. Figure 25
[4]:
thresholds, steps_data = compute_steps_to_thresholds(alpha_values, p_diff_matrix, n_thresholds=700)
fig, ax = plt.subplots()
plot_metric_vs_param(
alpha_values,
steps_data+1,
ax,
draw_best=False,
xscale='log',
yscale='log',
xlim=(1e-2, 1e2),
ylim=(1, 10000),
value_labels=thresholds,
add_min_curve=False
)
ax.set_xlabel(r'$\alpha$')
ax.set_ylabel('Steps to convergence')
ax.axvline(x=alpha_values[alpha_id_first_divergence], color='red', linestyle='-')
ax.axvline(x=alpha_values[alpha_id_optimal], color='green', linestyle='--', label="$\\alpha^*$")
ax.axvline(x=bound_1, color='blue', linestyle='-.', label='$\\alpha_0$')
ax.axvline(x=bound_2, color='blue', linestyle=':', label='$\\alpha_1$')
ax.axvline(x=bound_3, color='blue', linestyle='--', label='$\\alpha_2$')
p = patches.Rectangle((alpha_values[alpha_id_first_divergence],0), 100, 10000, linewidth=0, fill=True, fc='white', ec='red', hatch='\\\\\\\\',zorder=2, label='$\\alpha>\\alpha^\\mathrm{lim}$')
ax.add_patch(p)
ax.legend(loc='upper right')
plt.tight_layout()
plt.show()
