Implementation architecture

1 Statefulset for each rack#

CassKop will create a dedicated statefulset and service for each couple dc-rack defined in the topologysection. This is done to ensure we'll always have the same amounts of cassandra nodes in each rack for a specified DC.

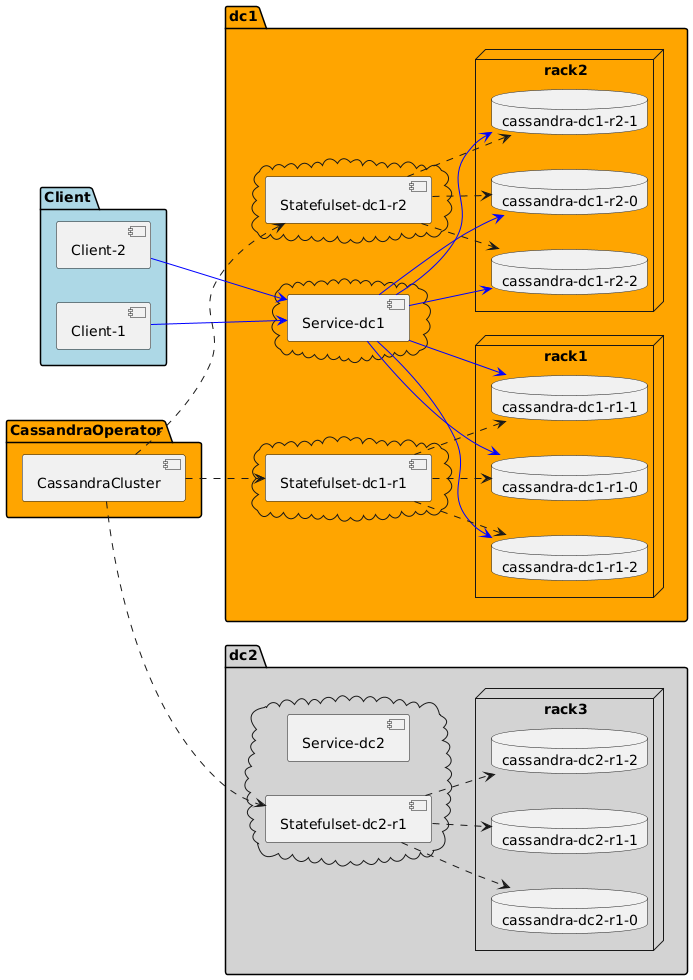

architecture

Sequences#

CassKop will works in sequence for each DC-Rack it has created which are different statefulsets kubernetes objects. Each time we request a change on the cassandracluster CRD which implies rollingUpdate of the statefulset, CassKop will perform the update on the first dc-rack.

CassKop will then wait for the operation to complete before starting the upgrade on the next dc-rack!!

If you play with spec.topology.dc[].rack[].rollingPartition with value greater than 0, then the rolling update of the rack won't end and CassKop won't update the next one. In order to allow a statefulset to upgrade completely the rollingPartition must be set to 0 (default).

Naming convention of created objects#

When declaring a new CassandraCluster, we need to specify its Name, and all its configuration.

Here is an excerpt of a CassandraCluster CRD definition:

apiVersion: "db.orange.com/v2"
kind: "CassandraCluster"
metadata:
name: cassandra-demo
labels:
cluster: optional-label
spec:
...
nodesPerRacks: 3
topology:
dc:
- name: dc1
labels:
location.myorg.com/site : mts
rack:
- name: rack1
labels:
location.myorg.com/street : street1
- name: rack2
labels:
location.myorg.com/street : street2
- name: dc2
nodesPerRacks: 4
labels:
location.myorg.com/site : mts
rack:
- name: rack1
labels:
location.myorg.com/street : street3

A complete example can be found here

Kubernetes objects created by CassKop are named according to :

  • <CassandraClusterName>-<DCName>-<RackName>
important

All elements must be in lower case according to Kubernetes DNS naming constraints

List of resources created as part of the Cassandra cluster#

  • <cluster-name>
    • PodDisruptionBudget: this is checked by Kubernetes and by CassKop and allows only 1 pod disrupted on the whole cluster. CassKop won't update statefulset in case there is a disruption.
  • <cluster-name>-<dc-name>
    • Headless service at dc level used as client applications entry point to contact all nodes in a Cassandra DC.
  • <cluster-name>-<dc-name>-<rack-name>
    • Statefulset which is in charge of managing Cassandra Pods for dc-name and rack-name
      • Service headless used for Seeds discovery
  • <cluster-name>-<dc-name>-<rack-name>-<idx>
    • Pods Names in the Statefulset for dc-name and rack-name with ordinal index.
  • data-<cluster-name>-<dc-name>-<rack-name>-<idx>
    • PersistentVolumeClaim representing the data for the associated Cassandra pod.
  • <cluster-name>-<dc-name>-<rack-name>-exporter-jmx
    • Service Name for the exporter JMX for dc-name and rack-name
  • <cluster-name>

With the previous example:

  • The CassandraCluster name is cassandra-demo
  • the first DC is named dc1
    • the first rack is named rack1
    • the second rack is named rack2
  • the second DC is named dc2
    • the first rack is named rack1

Example for DC dc1-rack1 :

  • the statefulsets is named : cassandra-demo-dc1-rack1,cassandra-demo-dc1-rack2,cassandra-demo-dc2-rack1
    • the statefulset Pods name will add the ordinal number suffix : cassandra-demo-dc1-rack1-0,..,cassandra-demo-dc1-rack1-n for each dc-rack
  • The services will be names : cassandra-demo-dc1 and cassandra-demo-dc2
  • the associated service for Prometheus metrics export will be named : cassandra-demo-dc1-exporter-jmx,cassandra-demo-dc2-exporter-jmx
  • the PVC (Persistent Volume Claim) of each pod will be named data-${podName} ex: data-cassandra-demo-dc1-rack1-0 for each dc-rack
  • the PodDisruptionBudget (PDB) will be named : cassandra-demo and will target all pods of the cluster
note

usually the PDB is only used when dealing with pod eviction (draining a kubernetes node). But CassKop also checks the PDB to know if it is allowed to make some actions on the cluster (restart Pod, apply changes..). If the PDB won't allow CassKop to make the change, it will wait until the PDB rule is satisfied. (We won't be able to make any change on the cluster, but it cassandra will continue to work underneath).
